20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350

  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
  • 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
Lugar de origen Guangzhou, China
Nombre de la marca BERGMAN, BERGMAN
Número de modelo FS-20
Cantidad de orden mínima 1
Precio $60-100

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tamaño 20 mm Material facial Tungsteno Carbide TC
Material de asiento Tungsteno Carbide TC Materiales de elastómeros VITON FPM
Piezas de metal SS316 Hastelloy C AM350 Presión máxima ≤ 1.5MPA
Velocidad de línea máxima ≤ 15m/s Rango de temperatura -20 ° C-180 ° C
Modelo FGL-FS Código HTS 8484.20.00
Modelos compatibles 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171 Cumplimiento de estándares DIN24960, ISO3069, EN12576, API682
Sello secundario VITON FPM Material tórico Depende de la aplicación
Compatibilidad de reemplazo Flygt SELLOS ORIGINALES
Resaltar

Tungsten Carbide TC Cartridge Seal

,

VITON FPM Cartridge Seal

,

SS316 Hastelloy C AM350 Flygt Seal
Deja un mensaje
Descripción de producto
Replace Flygt Cartridge Seal FS-20mm 2610 2620 2630 2640 4610 4620 3085 Mixer Pump Mechanical Seal
Product Specifications
Name Mechanical Seal
Size Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm)
Brand BERGMAN
Model FGL-FS
Pressure ≤ 1.5mpa
Temperature -20°C-180°C (Depends on O-ring material)
Face Material Tungsten carbide TC
Seat Material Tungsten carbide TC
Secondary Seal VITON FPM
Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015
Service OEM customization service
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Direct replacement for original Flygt seals
  • Available in different price points based on customer requirements
  • 2,000+ square meter warehouse with large inventory
  • Factory-direct pricing with excellent quality
  • Fast delivery times
  • OEM and customization services available
  • Can replace Burgman, John Crane, AES and other major brand seals
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
Product Images

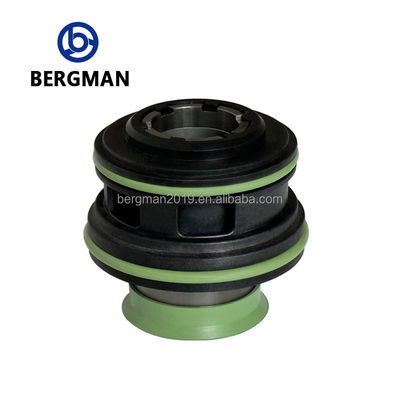

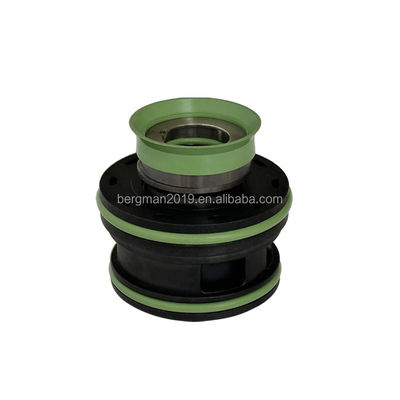

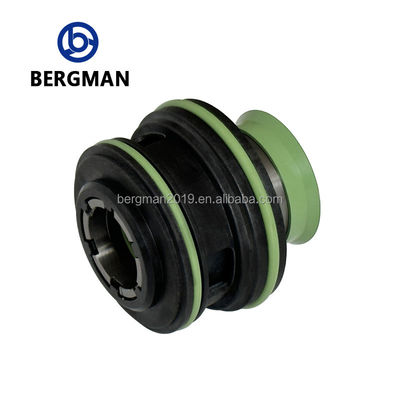

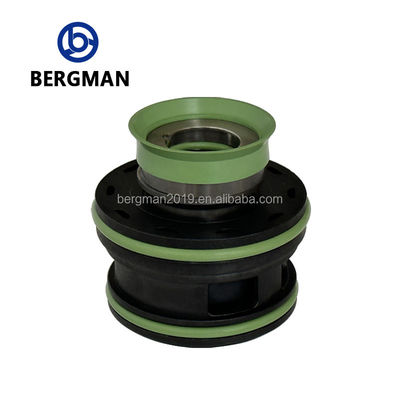

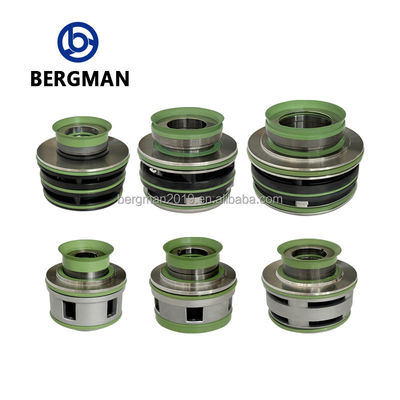

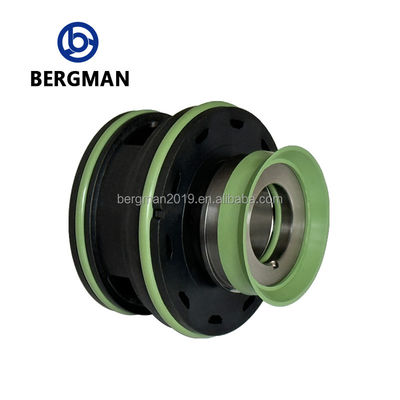

20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 0 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 1 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, we have grown into a leading manufacturer of mechanical seals with ISO9001:2015 certification.
Our product range includes pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, and various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery. Our company philosophy is: innovation, professionalism, and quality-oriented service.
20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 3
Facilities
  • Product exhibition hall with over 1,000 varieties
  • 2,000+ square meter warehouse with video viewing available
  • Modern machine tools and dust-free workshop
  • Advanced inspection equipment and assembly line operation
  • Regular participation in Guangzhou Spring Import and Export Fair
20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 4 20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 5
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps. Serving industries including petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation.
20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 6
Packaging & Shipping
Multiple packaging options available with custom packaging for large orders. Small size and weight make air, sea, and express shipping ideal.
20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350 7
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days production time.
Q: Do you provide free samples?
A: Samples are not free but sample cost can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
