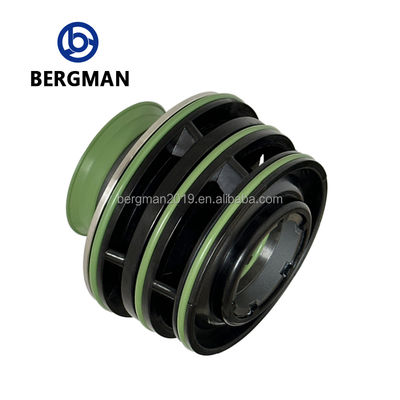

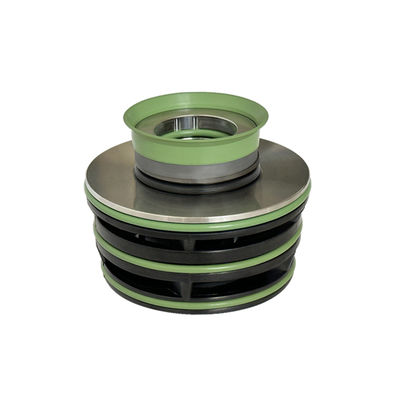

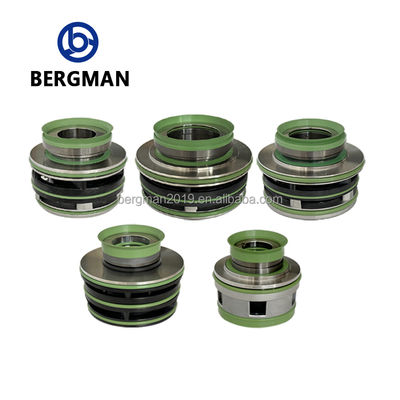

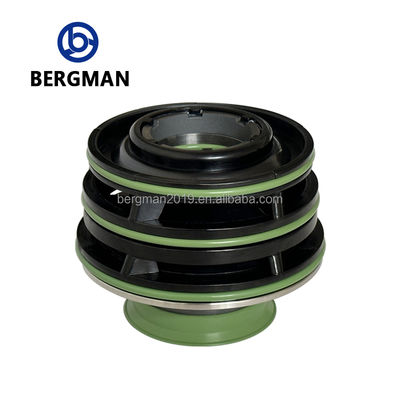

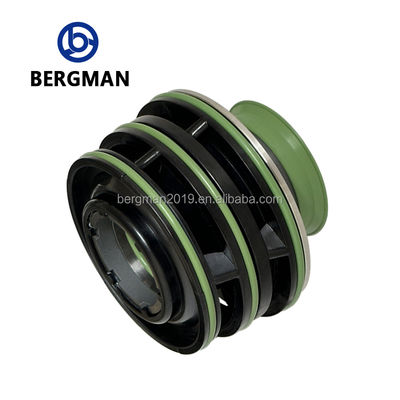

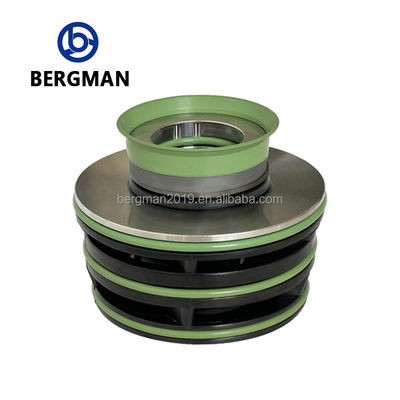

35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications

  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
  • 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
Lugar de origen Guangzhou, China
Nombre de la marca BERGMAN, BERGMAN
Número de modelo FS-35
Cantidad de orden mínima 1
Precio $180-260

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tamaño 35 mm Material facial Tungsteno Carbide TC
Material de asiento Tungsteno Carbide TC Materiales de elastómeros VITON FPM
Piezas de metal SS316 Hastelloy C AM350 Presión máxima ≤ 1.5MPA
Temperatura máxima -20 ° C-180 ° C Velocidad de línea máxima ≤ 15m/s
Modelo FGL-FS Código HTS 8484.20.00
Modelos compatibles 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171 Cumplimiento de estándares DIN24960, ISO3069, EN12576, API682
Sello secundario VITON FPM Material tórico Depende del rango de temperatura
Compatibilidad de reemplazo Flygt SELLOS ORIGINALES
Resaltar

ISO9001-2015 Mechanical Seal

,

Tungsten Carbide TC Pump Seal

,

VITON FPM Flygt Seal
Deja un mensaje
Descripción de producto
Flygt FS-35mm 3153 8204 2660 2670 Pump Barrel Mechanical Seal
Product Overview
High-quality mechanical seal replacement for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Country of Origin Guangzhou, China
Size Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm) Brand BERGMAN
Model FGL-FS MOQ 1 set
Pressure ≤ 1.5MPa Line Speed ≤ 15m/s
Temperature -20°C to 180°C (depends on O-ring material) Application Flygt pump
Face Material Tungsten Carbide (TC) Seat Material Tungsten Carbide (TC)
Secondary Seal VITON FPM Metal Parts SS316, Hastelloy C, AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Direct replacement for original Flygt seals
  • Available in different price points based on customer requirements
  • 2,000+ square meter warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other major brand seals
  • OEM and customization services available
  • Factory-direct pricing with excellent quality and fast delivery
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 0 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 1 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in various mechanical seals including pump seals, fluid seals, metal bellows seals, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 3
Facilities
  • Over 2,000 square meters of warehouse space
  • Modern machine tools and dust-free workshop
  • Advanced inspection equipment
  • Assembly line production
35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 4 35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 5
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 6
Packaging & Shipping
Various packaging options available with customized packaging for large orders.
35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications 7
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: Do you provide free samples?
A: Samples are not free, but sample costs can be refunded with order.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom orders.
