ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal

  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
  • ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal
Lugar de origen Guangzhou, China
Nombre de la marca BERGMAN, BERGMAN
Número de modelo Las medidas de seguridad se aplicarán en el caso de las aeronaves de las categorías A y B.
Cantidad de orden mínima 1
Precio $200-400

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tamaño 60 mm Material facial Tungsteno Carbide TC
Material de asiento Tungsteno Carbide TC Materiales de elastómeros VITON FPM
Piezas de metal SS316 Hastelloy C AM350 Presión máxima ≤ 1.5MPA
Temperatura máxima -20 ° C-180 ° C Velocidad de línea máxima ≤ 15m/s
Modelo FS-Q-L60 mm Código HTS 8484.20.00
Modelos compatibles Flygt 1335.181, 2024, 2056, etc. Cumplimiento de estándares DIN24960, ISO3069, EN12576, API682
Sello secundario VITON FPM Opciones de material Carburo de tungsteno, carburo de silicio, grafito de carbono, alúmina
Material tórico Depende del rango de temperatura
Resaltar

ISO9001-2015 Certified Flygt Pump Mechanical Seal

,

Replace Flygt FQL-60mm Mechanical Seal

,

Tungsten Carbide TC Lower Seal
Deja un mensaje
Descripción de producto
Replace Flygt FQL-60mm 3170 3201 4670 5100.230 5550 600 7045 7055.600 Pump Mechanical Seal Lower Seal
Product Description

Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for Flygt pumps.

Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 75mm, 80mm, 90mm)
Country of Origin Guangzhou, China Brand BERGMAN
Model FS-Q-L60mm MOQ 1 set
Pressure ≤ 1.5MPa Line Speed ≤ 15m/s
Temperature -20°C to 180°C (depends on O-ring material) Application Flygt pump
Face Material Tungsten Carbide (TC) Seat Material Tungsten Carbide (TC)
Secondary Seal VITON FPM Metal Parts SS316, Hastelloy C, AM350
Certificate ISO9001-2015 Service OEM customization service
Applications

Compatible with Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125
  • 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530

Complies with DIN24960, ISO3069, EN12576, API682 standards.

Our Advantages
  • 2000+ square meter warehouse with large inventory
  • Factory direct pricing with excellent quality
  • Fast delivery times
  • OEM and customization services available
  • Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina
  • Rubber seals, PTFE seals, O-rings available
  • Can replace Burgman, John Crane, AES and other world-renowned brand seals

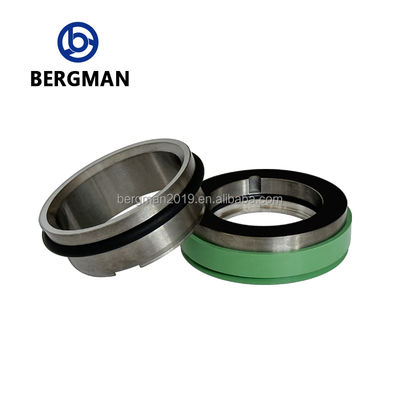

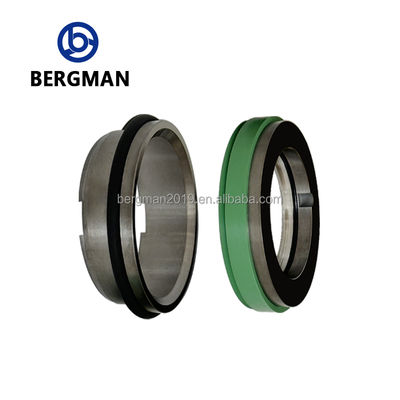

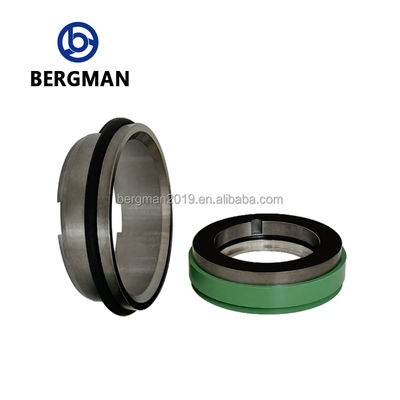

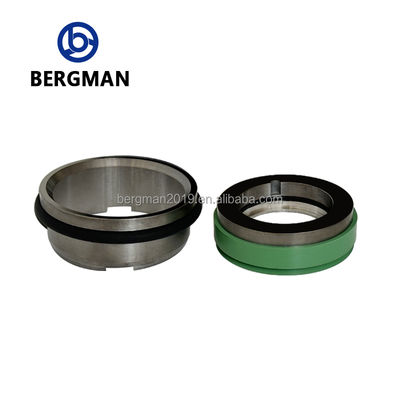

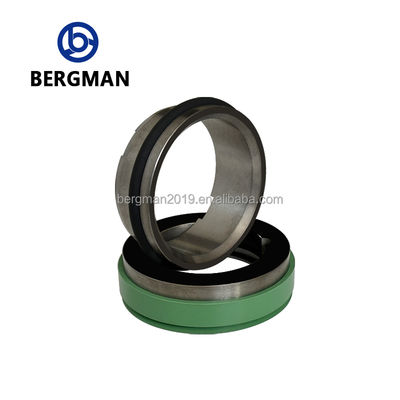

Product Images
ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 0 ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 1 ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. With over 20 years of development, we have grown into a leading manufacturer of mechanical seals with ISO9001:2015 certification.

Our product range includes pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals, and various sealing materials.

Located in Guangzhou with convenient access to major ports, we maintain a 2000+ square meter warehouse for efficient logistics and quick delivery.

ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 3
Exhibition and Warehouse

Over 1000 product varieties in our exhibition hall and 2000+ square meters of spot warehouse.

ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 4
Production Workshop

Modern advanced machine tool equipment, dust-free workshop, inspection equipment, and assembly line operation.

ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 5 ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 6
Application Range

Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.

ISO9001-2015 Certified Replace Flygt FQL-60mm Pump Mechanical Seal with Tungsten Carbide TC Lower Seal 7
FAQ
Q: Are you a factory or a trader?

A: We are a production factory with our own international trade department.

Q: Where is your factory located?

A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.

Q: How many days is your delivery time?

A: Stock items ship immediately after payment. Custom items require 10-25 days production time.

Q: Do you provide free samples?

A: Sample costs can be refunded after order placement.

Contact Us

International Trade

Li Wei: Mobile +86-15622176299

Yang Yingjie: WeChat/WhatsApp +86-15627223988

Yang Aijun: WeChat/WhatsApp +86-13602719849

Email: bergman168@outlook.com
